Additional information
| Electrical | Current Rating (Amps): 2 Average DC Resistance lower than (mOhm): 30 | ||
|---|---|---|---|
| Materials & Finishes | Barrel Material: Phosphor Bronze, Gold plated Plunger Material: Heat-treated BeCu, Gold plated Ball Material: Stainless Steel, Gold plated | ||
| Spring Material |
| ||

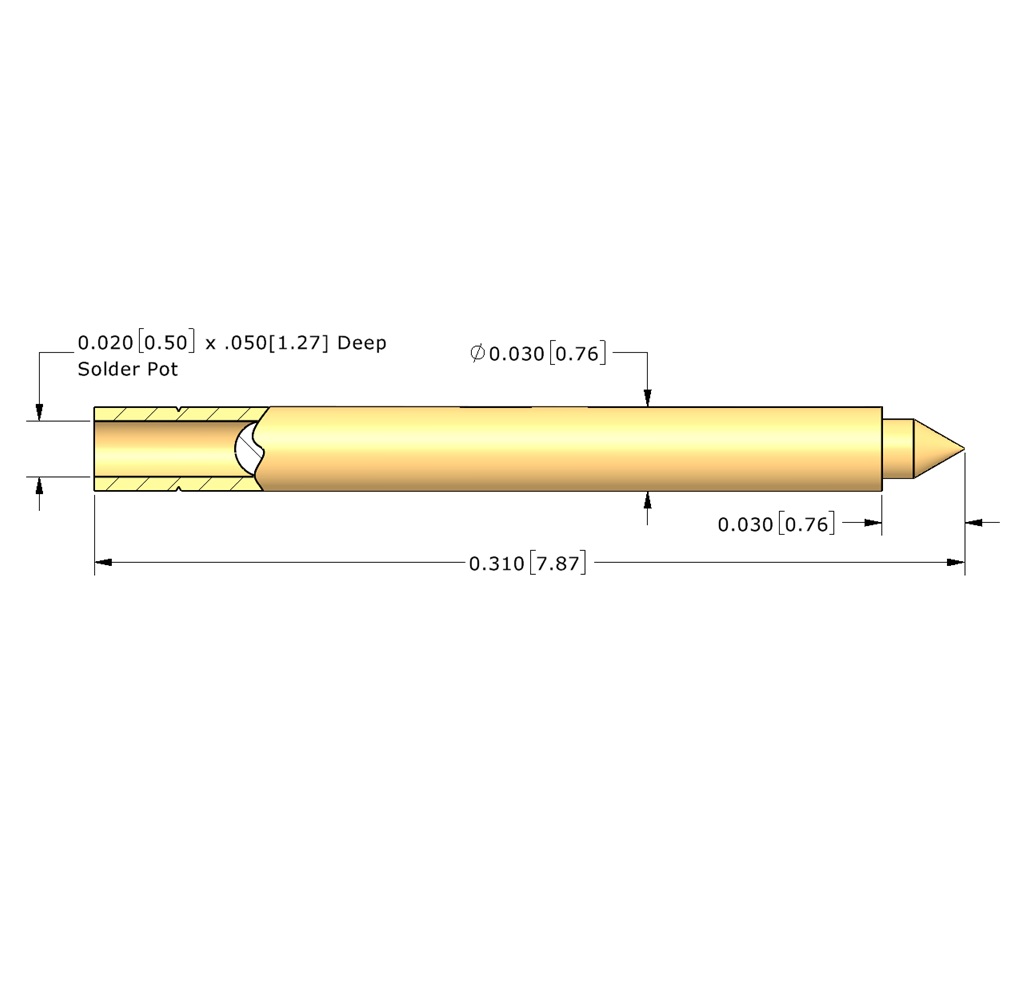

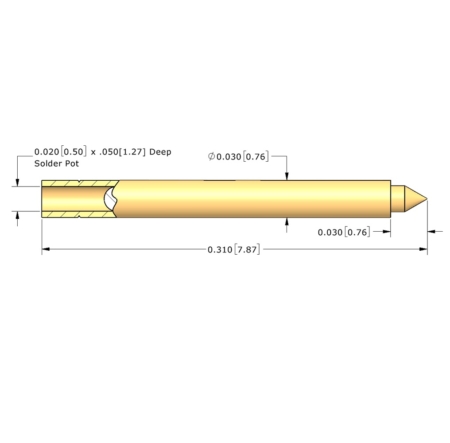

| Mechanical | Test Center (mil): 39 Test Center (mm): 1.00 Full Travel (mil): 30 Full Travel (mm): 0.76 Recommended Travel (mil): 20 Recommended Travel (mm): 0.51 Overall Length (mil): 310 Overall Length (mm): 7.87 Rec. Mounting Hole Size (mil): 31.5 Rec. Mounting Hole Size (mm): 0.80 Recommended Drill Size: #68 or 0.79 mm | ||
| Thermal | Min Operating Temp (°C): -55 Max Operating Temp (°C): 150 |
